Asic soundproofing kit for 200mm air extractor
48h-72h
139,99€
This Asic Soundproofing Kit drastically reduces the noise of your Asic. The noise level goes from over 80dB to less than 60dB . The cooling of your Asic is greatly improved and allows for better overclocking .
How does it work?

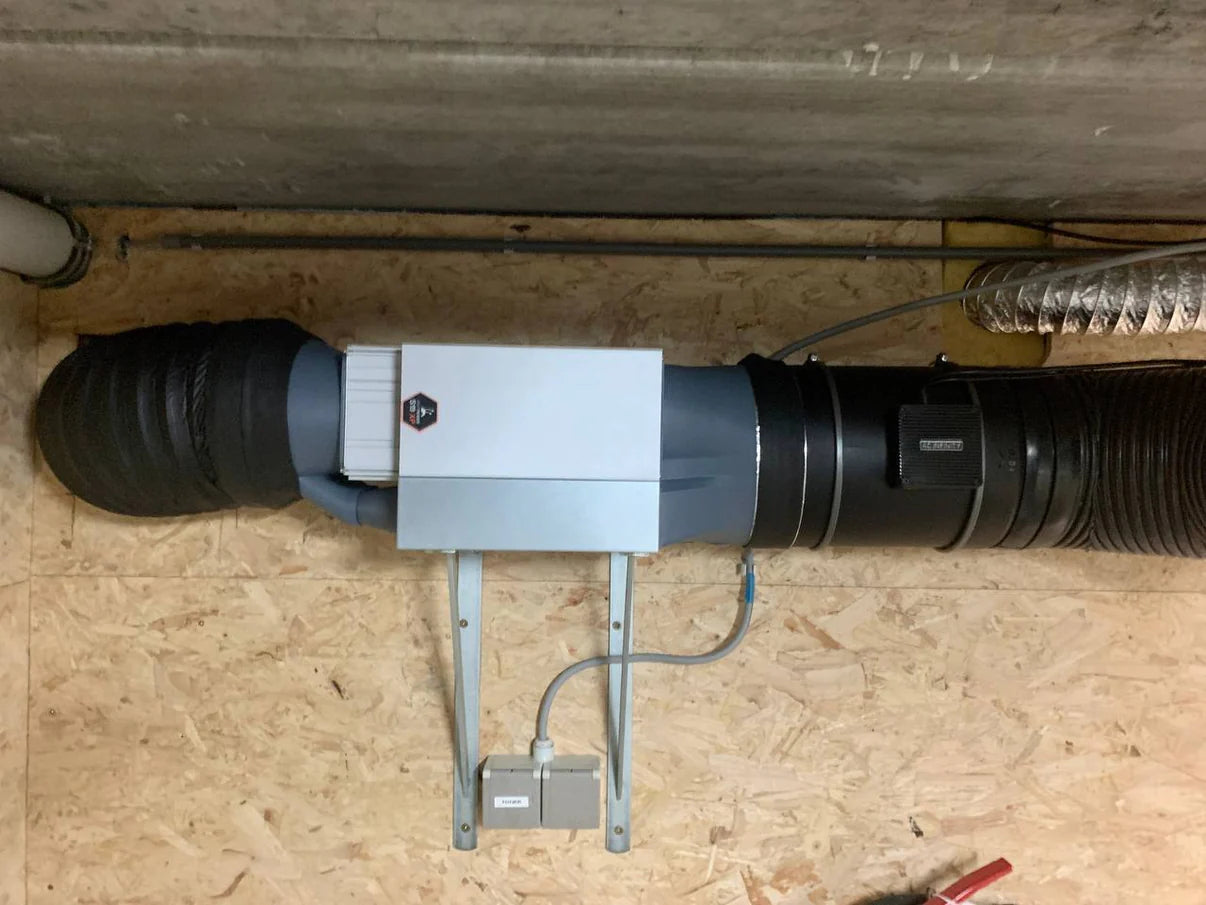

The fans are removed and replaced with a much quieter air extractor . Cooling is also very efficient.

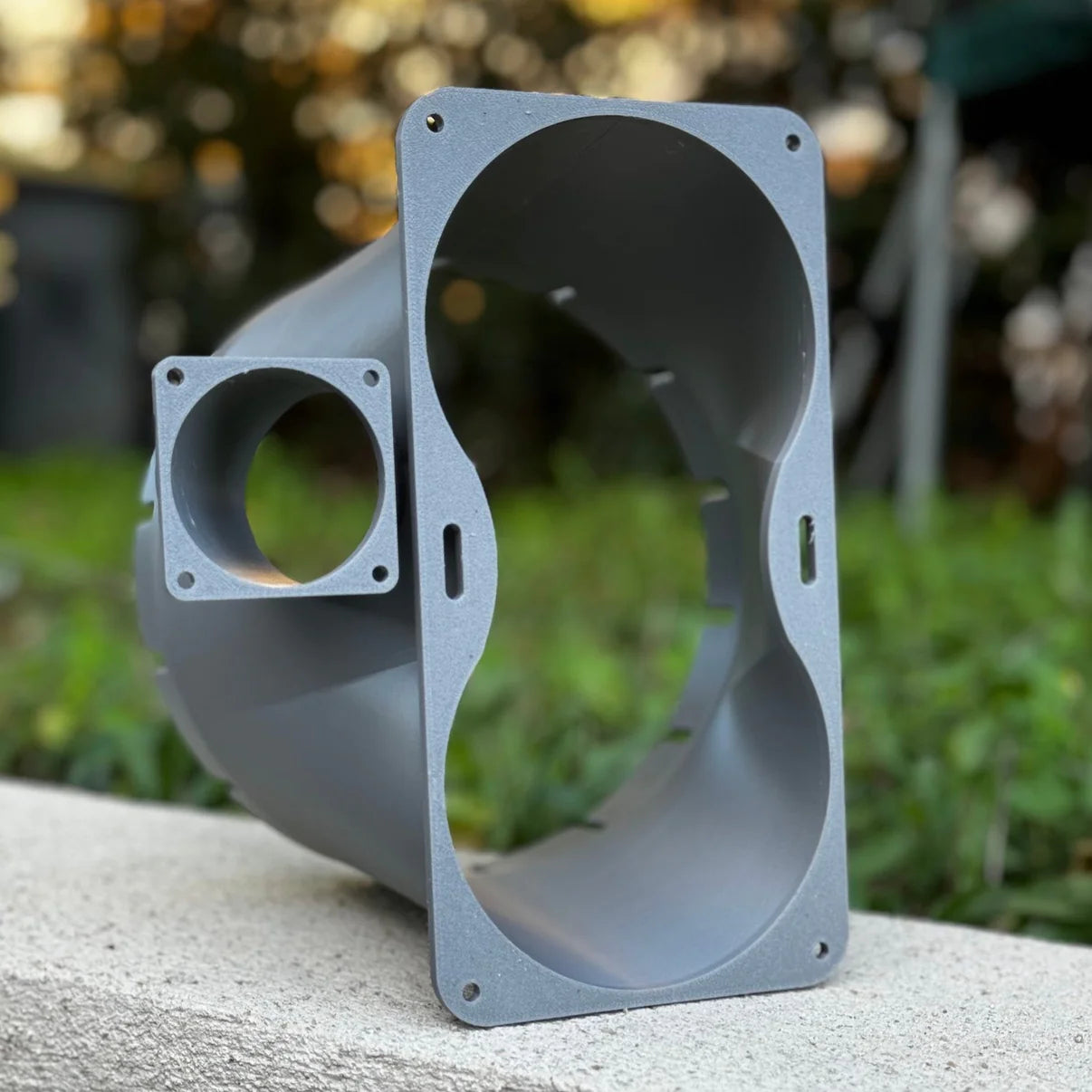

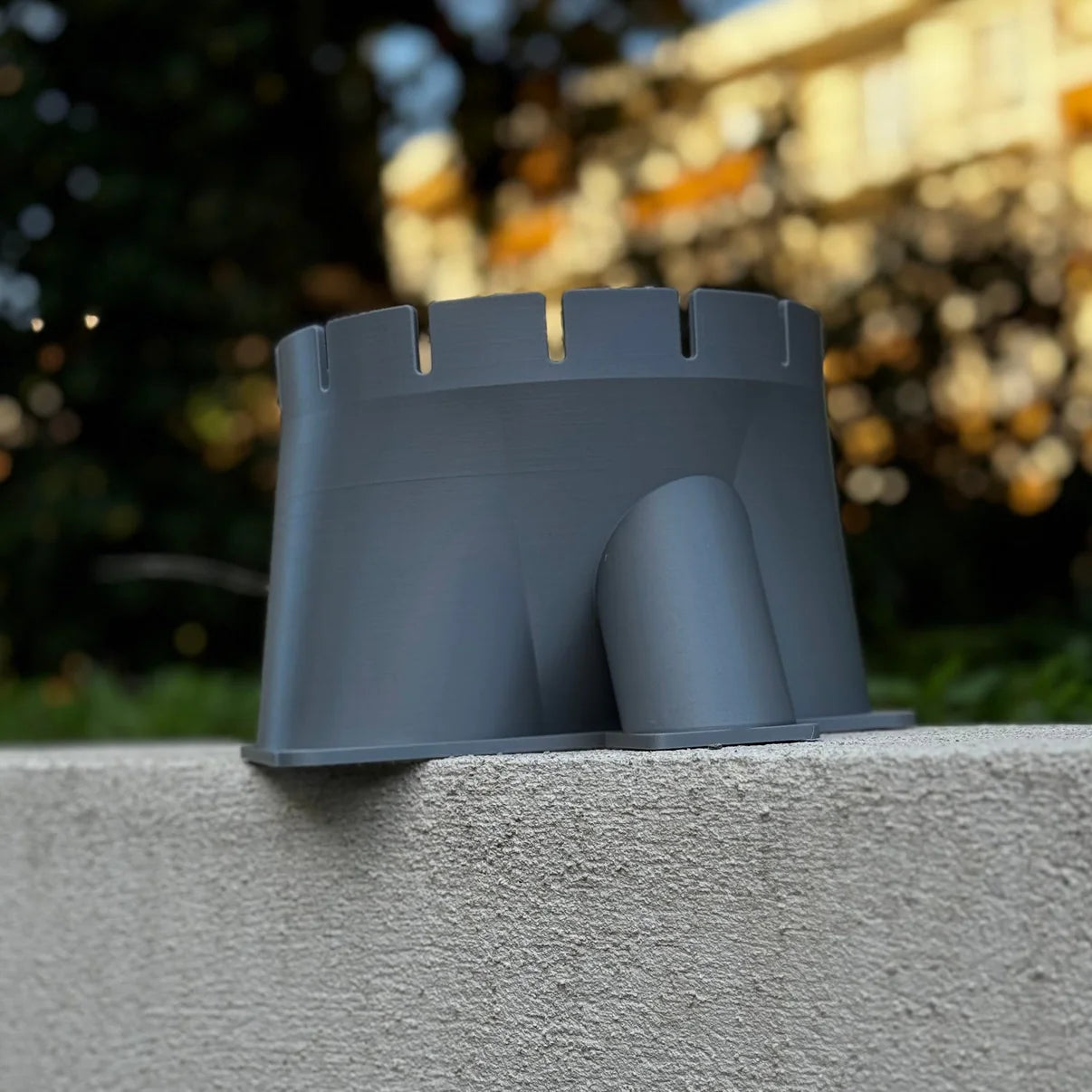

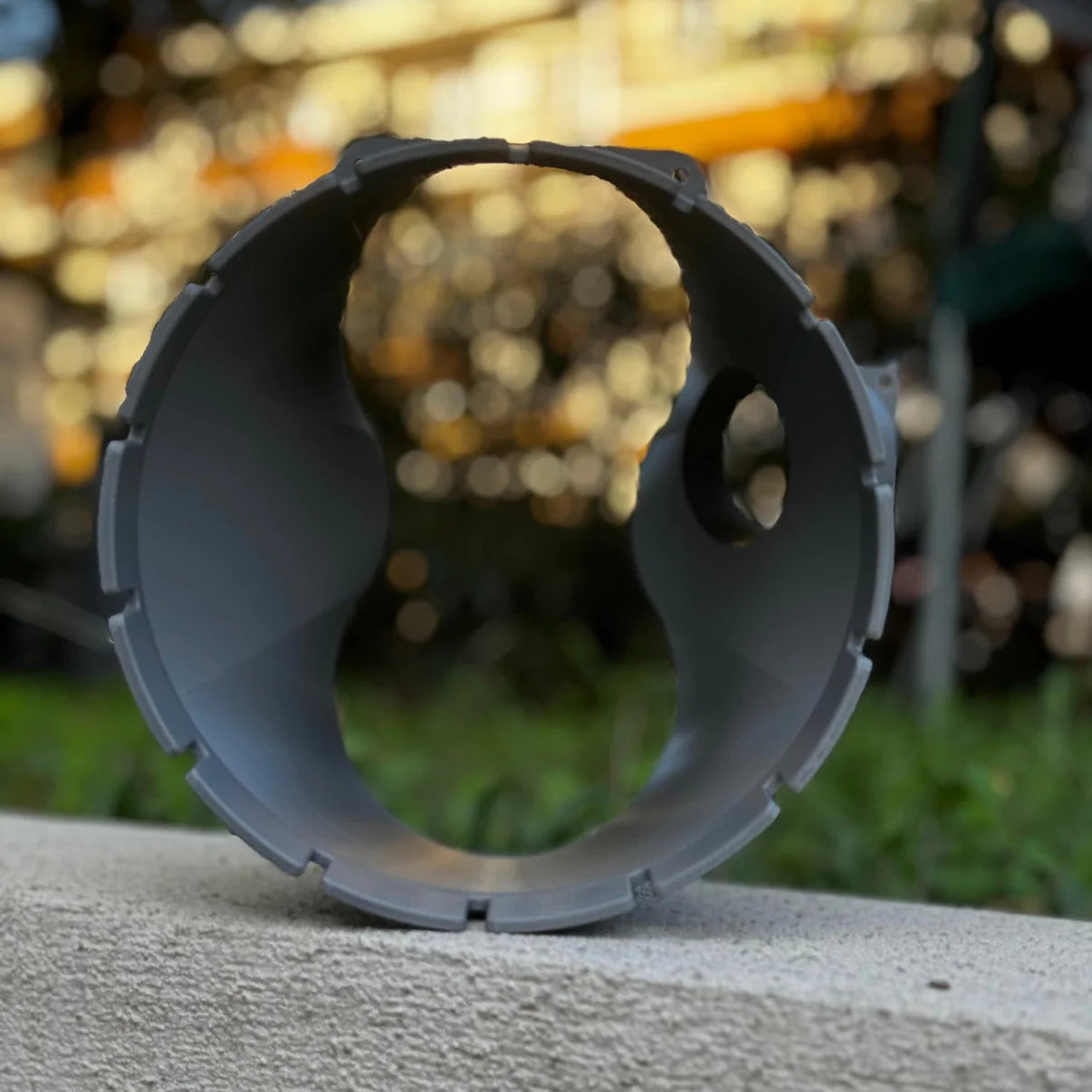

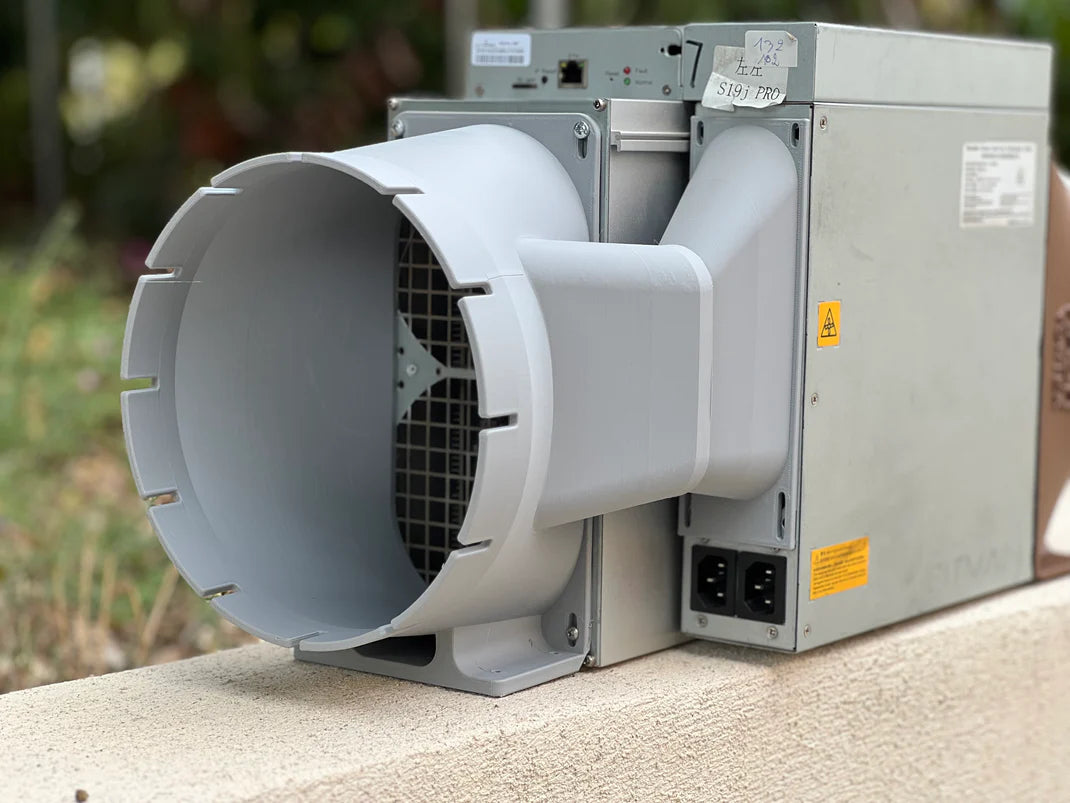

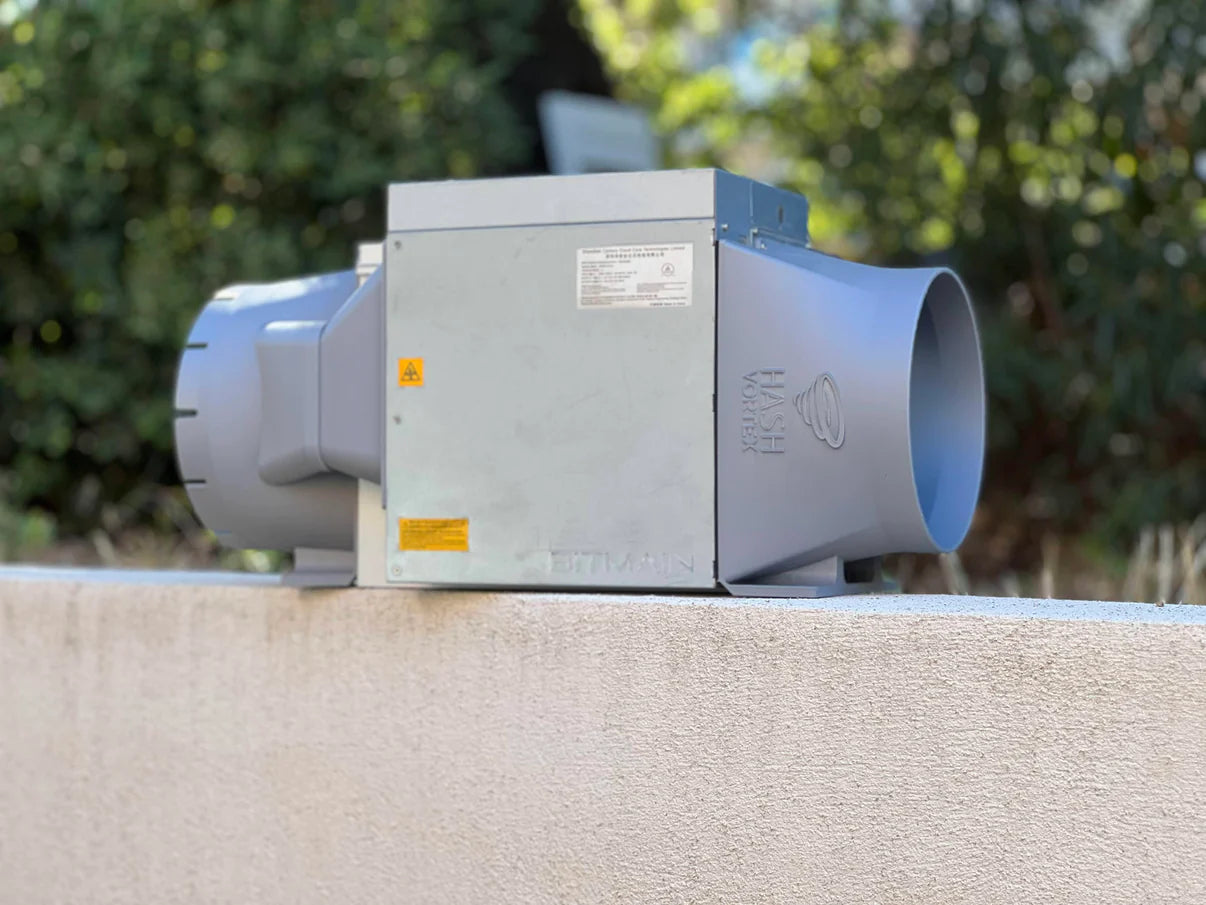

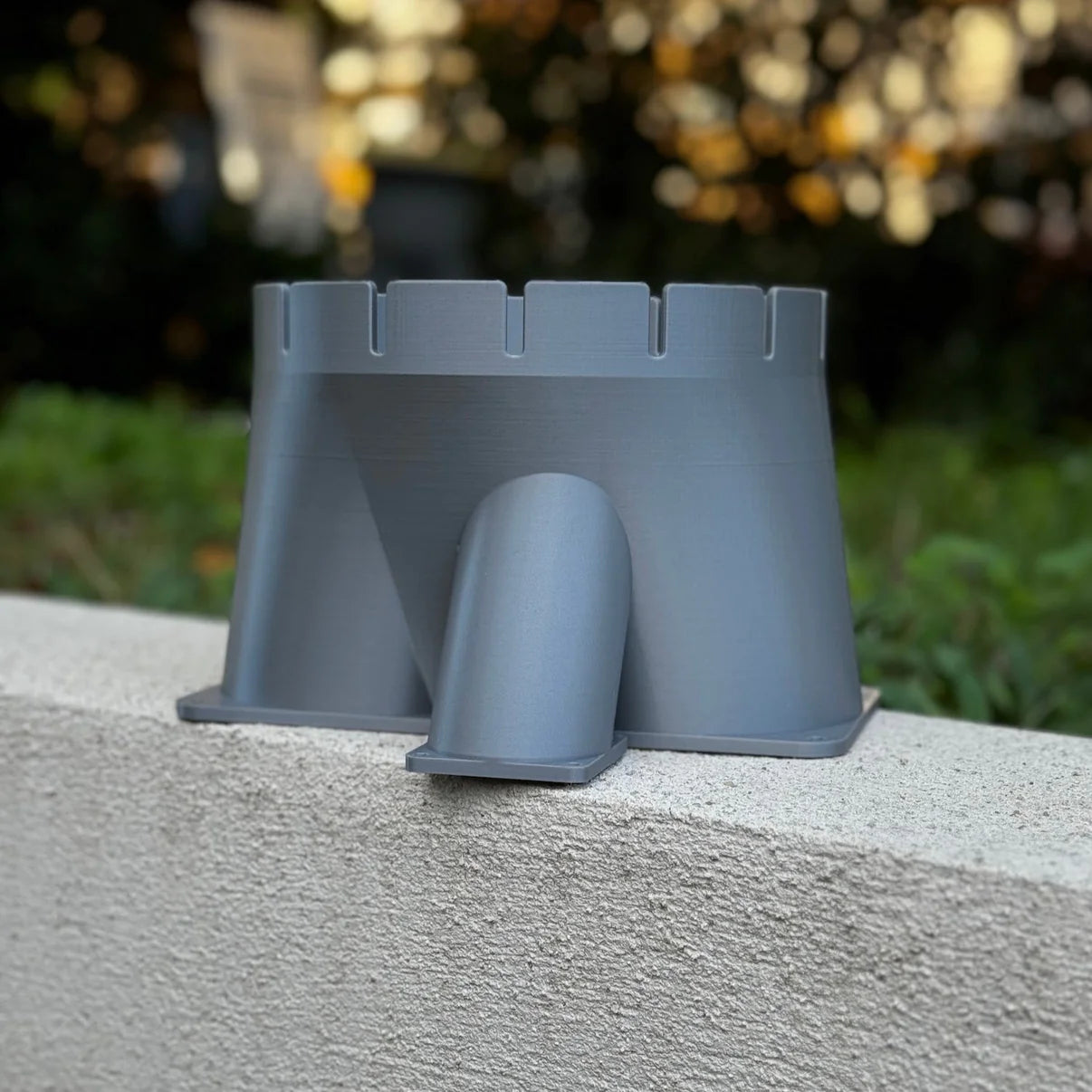

Industrial-grade 3D-printed ducts replace the fans. They attach exactly where the fans would have been and allow you to connect an air extractor on one end and expel hot air from the other. It's also possible to remove the fans from the power supply.

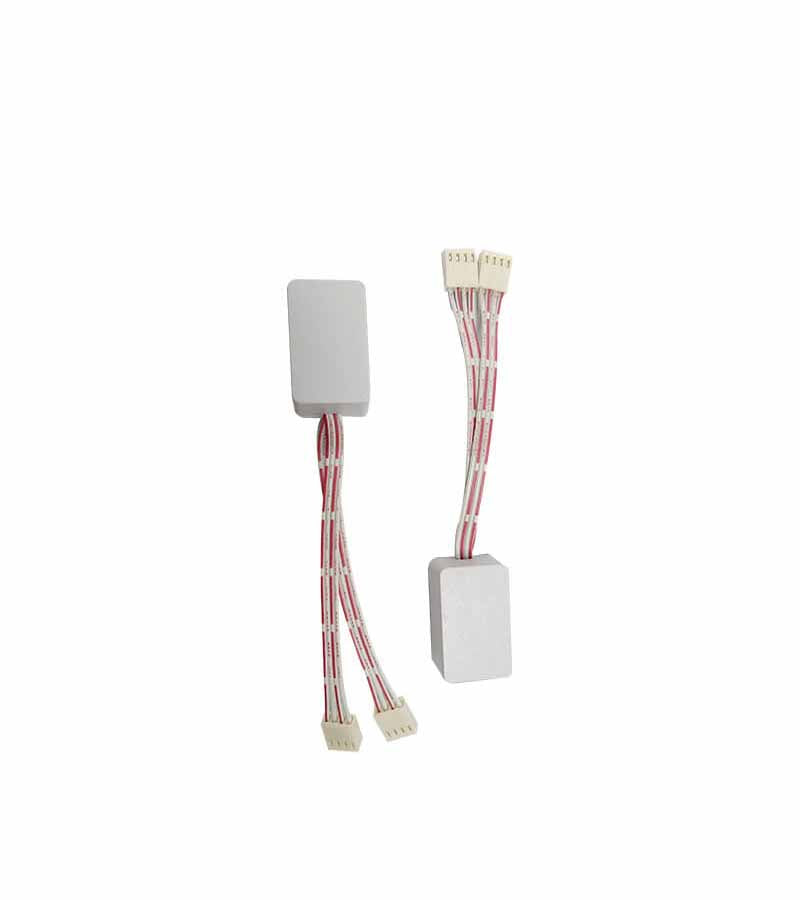

Fan simulators are required and provided in the Kit to trick the Asic and simulate proper fan operation.
This assembly also allows the machine to be better cooled and the flow of hot air to be directed into an outlet duct.
3D ducts can also be attached to fans if you only want to optimize cooling.
How does it work?
The fans are removed and replaced with a much quieter air extractor . Cooling is also very efficient.
Industrial-grade 3D-printed ducts replace the fans. They attach exactly where the fans would have been and allow you to connect an air extractor on one end and expel hot air from the other. It's also possible to remove the fans from the power supply.
Fan simulators are required and provided in the Kit to trick the Asic and simulate proper fan operation.
This assembly also allows the machine to be better cooled and the flow of hot air to be directed into an outlet duct.
3D ducts can also be attached to fans if you only want to optimize cooling.
Assembly is quite simple (about 30 min).
Here is a video tutorial here: https://www.youtube.com/watch?v=1auVk4Sh0UI
KIT CONTENTS:
- 2x 200mm 3D printed industrial grade ducts (inlet/outlet) ( PETG HT 90°C)
- 2x fan simulators
- 12x fixing screws
To complete our Kit, you still need to purchase additional items (not supplied):
- 1 air extractor with a diameter of 200mm (between €150 and €200 on Amazon)
- 1 200mm hose clamp
- 1 duct to direct hot air (optional)
